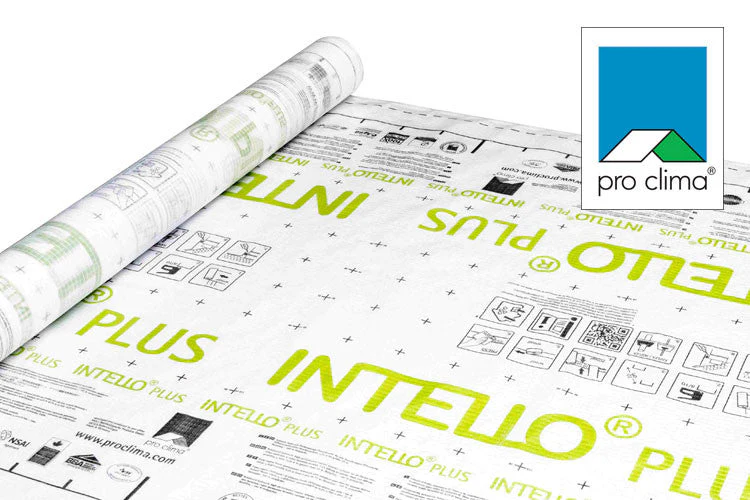

INTELLO PLUS Double-Wide (Unfolded)

Applications

Air barrier, smart vapor control, and dense-pack reinforcement all in one. INTELLO Plus^® is the keystone to long-lasting airtightness and intelligent vapor control in walls and roofs.

Advantages

• Vapor Variable: Low Class II vapor retarder in winter (<0.13 Perm), protects against condensation, and maximum vapor openness in summer (13.2 Perm) to facilitate rapid drying to the interior in summer. Protects the assembly during construction high humidity periods (>70% RH) with a DIN 68800-2 compliant, HYDROSAFE ® value of 1.6 perms
• Works with wide range of insulation materials, including dense-pack cellulose, Havelock wool, stone wool, fiberglass, and many others. The semi-translucent material allows dense packed blown-in insulation to be inspected after installation
• PHI Certified Class A Passive House Component
• Living Building Challenge Compliant — Red List Free
• Pro Clima Intelligent Airtight system (TESCON VANA tape, ROFLEX gaskets etc) allows for fast, reliable installation
• Certified to ICC-AC528-Humidity dependent Vapor Retarders  - ICC ESR 4854

Properties:

• Material:  polyethelyene copolymer protected by PP covers
• Tensile strength: has mesh reinforcement for durable blown-in insulation
• Permeability: VAPOR VARIABLE from 0.13 to over 13 perm – best in class (factor 100)
• Class A material per ASTM E84 test (0 FS, 35 SDI)
• Air permeance per ASTM E2178 0.00005cfm/ft² (0.0025 L/s*m²)
• UV/weather Resistance: if direct UV/weather exposure is expected - use INTELLO X
